602 Crate Engine Parts

602 Crate Engine Parts


Bulletproof Your ‘602 Valve Train: Every racer who runs a ‘602 crate knows the stock valve springs are a real problem. The stock Chevy valve springs lose a lot of pressure after just a few nights of racing.

On the ‘602 crate motor, we are concerned about losing the valve spring pressure when the stock springs go south.  When the spring loss a significant amount of pressure, the valves will start to float.  This not only causes the engine to loose rpm and power but also very damaging to the valve train.

We have reached an agreement with Dynamic Cylinder Heads LLC, a company in South Dakota, on the sale of our entire 602 Crate engine product line plus Vortec, Vortec Bow-Tie and Dart SS cylinder head programs, machinery and processes. See video on our home page. Here is Nick German’s contact information:

Dynamic Cylinder Head LLC Attn; Nick German, 310 N. Linda Ave. Unit #10, Tea, SD 57064. 605-214-2248 nick@dynamiccylinderhead.com

602 springs, retainers, cams, bottle caps and cylinder heads are available from Nick.

Install our “Look-A-Like” valve springs and retainers you will not have to worry about valve float again.

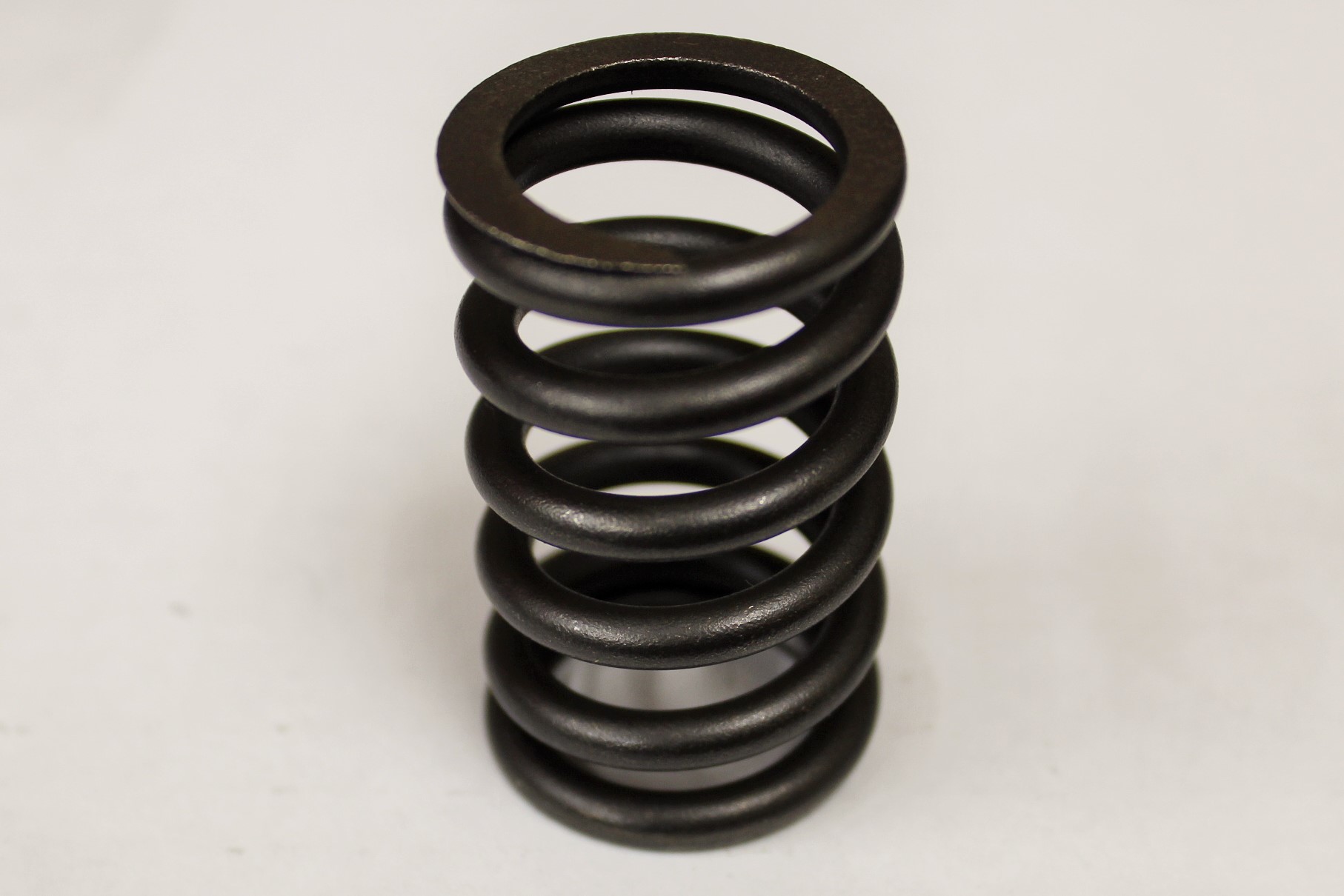

Look-A-Like replacement valve spring for the ‘602 Crate Motor. Same wire diameter, O.D. and installed height as the stock spring.

602SP – 16 Look-A-Like springs $279.00


retainerThe stock Chevy retainers are made out of cheap low-carbon steel. Low-Carbon steel works for production street cars but is inferior for racing applications. Our chrome moly Look-A-Like retainer will not break.

 #602R – 16 Look-A-Like retainers – $95.00






Our Crate Master camshafts are ground on original Chevy camshaft cores. The duration and lobe centers are changed; the valve lift is the same as stock.



NEW Crate Master Camshaft – $525.00

We do not supply lifters. The factory Chevy part number for a set of 16 lifters for the 602 crate is 12371044.



602 Head Bottle Cap Bottom Kit

This 602 Bottle Cap Bottom Kit includes components for the cylinder heads. $150.00.



602 intake bottle cap bottom kit

This 602 Bottle Cap Bottom Kit includes components for the intake manifold. $150.00.

602 Oil Pan or Front Cover Bottom Kit

This 602 Bottle Cap Bottom kit includes components for either the front cover or oil pan.  Note: The Bottle Cap Bottoms are the same for the front cover and oil pan. If our instructions are followed,  you will most likely not need this kit. $125.00.
